Reflection
When writing the code, I was wondering some ways on how to make my code much efficient. So I used my previous knowledge in Javascript functions to properly simplify the process of code writing. The activity just made me realize some similarities from when I was studying Javascript independently in the past.
There were some quirks and problems in the this activity that I encountered early on. For example, I was wondering if there is an easier way to center text in the console. In some ways, alignment becomes some of the main problems in displaying code.
In general, the code for me might seem to look a little inefficient, which proves to me that there are some things that I have yet to understand. This, all by itself, tells that there are still room for improvement.
Gallery

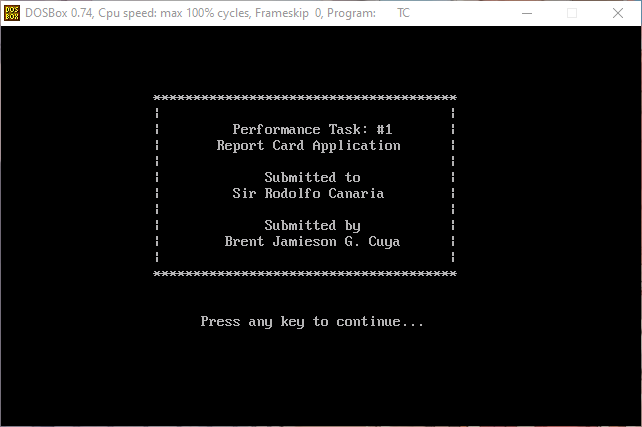

- Front Page Screen

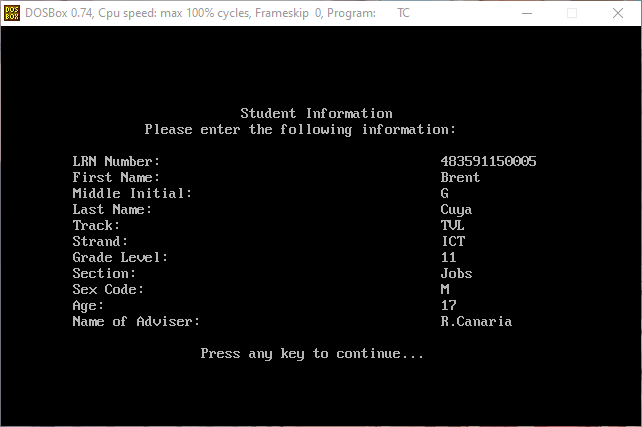

- Student Entry Form

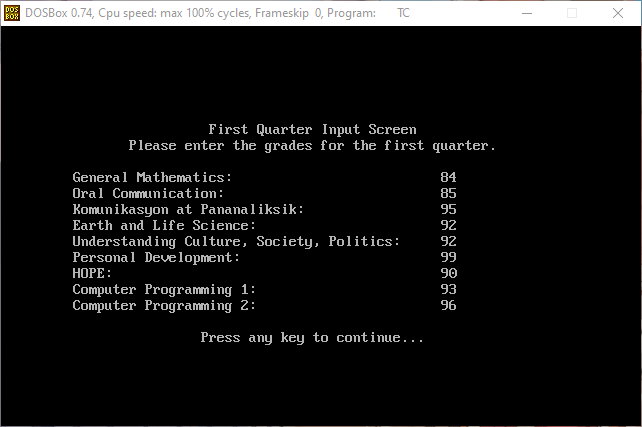

- Student Grade Entry Form 1

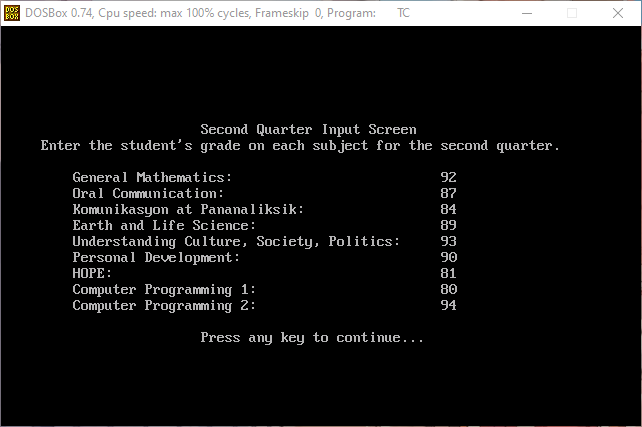

- Student Grade Entry Form 2

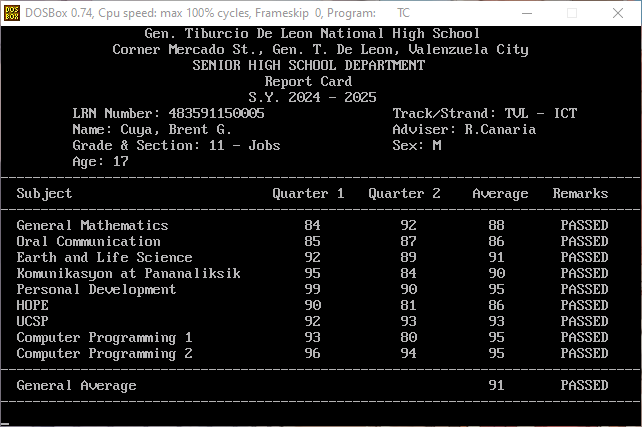

- Report Card Screen
Code
- The source code below displays the original source code of this program.
- For the updated source code, with loops and some modifications, see here.
#include <iostream.h>
#include <conio.h>
#include <string.h>
#include <math.h>
// Functions
char* isPassed (float average) {
if (average >= 75) {
return "PASSED";
} else {
return "FAILED";
}
}
float round (float num, int placeValue) {
float offset, roundn;
offset = (num * pow(10, placeValue)) - floor(num * pow(10, placeValue));
if (offset >= 0.5) {
roundn = ceil(num * pow(10, placeValue)) / pow(10, placeValue);
} else {
roundn = floor(num * pow(10, placeValue)) / pow(10, placeValue);
}
return roundn;
}
int messageSpacer (char* message, int startx, int starty) {
int i, length, endx;
endx = 55;
length = strlen(message);
gotoxy(startx, starty); cout << message;
for (i = startx + length; i <= endx; i++) {
gotoxy(i, starty); cout << " ";
}
return 0;
}
main () {
//Initialization
char lrnNum[13], firstName[20], lastName[15], middleInitial[2], track[10], strand[5], section[12], adviser[30], sexCode[2], gradeLevel[3], age[3];
float oral1, perdev1, kompan1, genmath1, hope1, ucsp1, eals1, cprg1a, cprg2a;
float oral2, perdev2, kompan2, genmath2, hope2, ucsp2, eals2, cprg1b, cprg2b;
float avgoral, avgperdev, avgkompan, avggenmath, avghope, avgucsp, avgeals, avgcprg1, avgcprg2, genavg;
int i;
clrscr();
//Start Menu
gotoxy(20, 5); cout << "**************************************";
gotoxy(30, 7); cout << "Performance Task: #1";
gotoxy(28, 8); cout << "Report Card Application";
gotoxy(34, 10); cout << "Submitted to";
gotoxy(30, 11); cout << "Sir Rodolfo Canaria";
gotoxy(34, 13); cout << "Submitted by";
gotoxy(29, 14); cout << "Brent Jamieson G. Cuya";
gotoxy(20, 16); cout << "**************************************";
gotoxy(26, 19); cout << "Press any key to continue...";
for (i = 6; i < 16; i++) {
gotoxy(20, i); cout << "|";
gotoxy(57, i); cout << "|";
};
gotoxy(80, 25);
getch();
clrscr();
//Student Data Entry
gotoxy(31, 6); cout << "Student Information";
gotoxy(19, 7); cout << "Please enter the following information:";
messageSpacer("LRN Number: ", 10, 9); cin >> lrnNum;
messageSpacer("First Name: ", 10, 10); cin >> firstName;
messageSpacer("Middle Initial: ", 10, 11); cin >> middleInitial;
messageSpacer("Last Name: ", 10, 12); cin >> lastName;
messageSpacer("Track: ", 10, 13); cin >> track;
messageSpacer("Strand: ", 10, 14); cin >> strand;
messageSpacer("Grade Level: ", 10, 15); cin >> gradeLevel;
messageSpacer("Section: ", 10, 16); cin >> section;
messageSpacer("Sex Code: ", 10, 17); cin >> sexCode;
messageSpacer("Age: ", 10, 18); cin >> age;
messageSpacer("Name of Adviser: ", 10, 19); cin >> adviser;
gotoxy(26, 21); cout << "Press any key to continue...";
getch();
clrscr();
// Student Grade Entry: Quarter 1
messageSpacer("First Quarter Input Screen", 27, 7);
messageSpacer("Please enter the grades for the first quarter.", 17, 8);
messageSpacer("General Mathematics: ", 10, 10); cin >> genmath1;
messageSpacer("Oral Communication: ", 10, 11); cin >> oral1;
messageSpacer("Komunikasyon at Pananaliksik: ", 10, 12); cin >> kompan1;
messageSpacer("Earth and Life Science: ", 10, 13); cin >> eals1;
messageSpacer("Understanding Culture, Society, Politics: ", 10, 14); cin >> ucsp1;
messageSpacer("Personal Development: ", 10, 15); cin >> perdev1;
messageSpacer("HOPE: ", 10, 16); cin >> hope1;
messageSpacer("Computer Programming 1: ", 10, 17); cin >> cprg1a;
messageSpacer("Computer Programming 2: ", 10, 18); cin >> cprg2a;
gotoxy(26, 20); cout << "Press any key to continue...";
getch();
clrscr();
// Student Grade Entry: Quarter 2
messageSpacer("Second Quarter Input Screen", 26, 7);
messageSpacer("Enter the student's grade on each subject for the second quarter. ", 6, 8);
messageSpacer("General Mathematics: ", 10, 10); cin >> genmath2;
messageSpacer("Oral Communication: ", 10, 11); cin >> oral2;
messageSpacer("Komunikasyon at Pananaliksik: ", 10, 12); cin >> kompan2;
messageSpacer("Earth and Life Science: ", 10, 13); cin >> eals2;
messageSpacer("Understanding Culture, Society, Politics: ", 10, 14); cin >> ucsp2;
messageSpacer("Personal Development: ", 10, 15); cin >> perdev2;
messageSpacer("HOPE: ", 10, 16); cin >> hope2;
messageSpacer("Computer Programming 1: ", 10, 17); cin >> cprg1b;
messageSpacer("Computer Programming 2: ", 10, 18); cin >> cprg2b;
gotoxy(26, 20); cout << "Press any key to continue...";
getch();
clrscr();
// Grade computation
avggenmath = (genmath1 + genmath2) / 2;
avgoral = (oral1 + oral2) / 2;
avgperdev = (perdev1 + perdev2) / 2;
avgeals = (eals1 + eals2) / 2;
avgucsp = (ucsp1 + ucsp2) / 2;
avghope = (hope1 + hope2) / 2;
avgkompan = (kompan1 + kompan2) / 2;
avgcprg1 = (cprg1a + cprg2a) / 2;
avgcprg2 = (cprg2a + cprg2b) / 2;
genavg = (avggenmath + avgcprg2 + avgcprg1 + avgkompan + avghope + avgucsp + avgeals + avgperdev + avgoral) / 9;
// Report Card Display
// Header
gotoxy(19, 2); cout << "Gen. Tiburcio De Leon National High School";
gotoxy(15, 3); cout << "Corner Mercado St., Gen. T. De Leon, Valenzuela City";
gotoxy(25, 4); cout << "SENIOR HIGH SCHOOL DEPARTMENT";
gotoxy(34, 5); cout << "Report Card";
gotoxy(32, 6); cout << "S.Y. 2024 - 2025";
gotoxy(10, 7); cout << "LRN Number: " << lrnNum;
gotoxy(10, 8); cout << "Name: " << lastName << ", " << firstName << " " << middleInitial << ".";
gotoxy(10, 9); cout << "Grade & Section: " << gradeLevel << " - " << section;
gotoxy(10, 10); cout << "Age: " << age;
gotoxy(50, 7); cout << "Track/Strand: " << track << " - " << strand;
gotoxy(50, 8); cout << "Adviser: " << adviser;
gotoxy(50, 9); cout << "Sex: " << sexCode;
// Divider
gotoxy(1, 11); cout << "--------------------------------------------------------------------------------";
gotoxy(3, 12); cout << "Subject";
gotoxy(35, 12); cout << "Quarter 1";
gotoxy(47, 12); cout << "Quarter 2";
gotoxy(60, 12); cout << "Average";
gotoxy(70, 12); cout << "Remarks";
gotoxy(1, 13); cout << "--------------------------------------------------------------------------------";
// Subject
gotoxy(3,14); cout << "General Mathematics";
gotoxy(3,15); cout << "Oral Communication";
gotoxy(3,16); cout << "Earth and Life Science";
gotoxy(3,17); cout << "Komunikasyon at Pananaliksik";
gotoxy(3,18); cout << "Personal Development";
gotoxy(3,19); cout << "HOPE";
gotoxy(3,20); cout << "UCSP";
gotoxy(3,21); cout << "Computer Programming 1";
gotoxy(3,22); cout << "Computer Programming 2";
// Quarter 1 Grades
gotoxy(39, 14); cout << genmath1;
gotoxy(39, 15); cout << oral1;
gotoxy(39, 16); cout << eals1;
gotoxy(39, 17); cout << kompan1;
gotoxy(39, 18); cout << perdev1;
gotoxy(39, 19); cout << hope1;
gotoxy(39, 20); cout << ucsp1;
gotoxy(39, 21); cout << cprg1a;
gotoxy(39, 22); cout << cprg2a;
// Quarter 2 Grades
gotoxy(51, 14); cout << genmath2;
gotoxy(51, 15); cout << oral2;
gotoxy(51, 16); cout << eals2;
gotoxy(51, 17); cout << kompan2;
gotoxy(51, 18); cout << perdev2;
gotoxy(51, 19); cout << hope2;
gotoxy(51, 20); cout << ucsp2;
gotoxy(51, 21); cout << cprg1b;
gotoxy(51, 22); cout << cprg2b;
// Average
gotoxy(62, 14); cout << round(avggenmath, 0);
gotoxy(62, 15); cout << round(avgoral, 0);
gotoxy(62, 16); cout << round(avgeals, 0);
gotoxy(62, 17); cout << round(avgkompan, 0);
gotoxy(62, 18); cout << round(avgperdev, 0);
gotoxy(62, 19); cout << round(avghope, 0);
gotoxy(62, 20); cout << round(avgucsp, 0);
gotoxy(62, 21); cout << round(avgcprg1, 0);
gotoxy(62, 22); cout << round(avgcprg2, 0);
//Remarks
gotoxy(71, 14); cout << isPassed(avggenmath);
gotoxy(71, 15); cout << isPassed(avgoral);
gotoxy(71, 16); cout << isPassed(avgeals);
gotoxy(71, 17); cout << isPassed(avgkompan);
gotoxy(71, 18); cout << isPassed(avgperdev);
gotoxy(71, 19); cout << isPassed(avghope);
gotoxy(71, 20); cout << isPassed(avgucsp);
gotoxy(71, 21); cout << isPassed(avgcprg1);
gotoxy(71, 22); cout << isPassed(avgcprg2);
// Footer
gotoxy(1, 23); cout << "--------------------------------------------------------------------------------";
gotoxy(3, 24); cout << "General Average ";
gotoxy(62, 24); cout << round(genavg, 0);
gotoxy(71, 24); cout << isPassed(genavg);
gotoxy(1, 25); cout << "--------------------------------------------------------------------------------";
getch();
}Explanation
The code uses user-defined functions:
isPassed(avg)- A function that returns the string
"PASSED"if the integeraverageis greater than75, and returns"FAILED"otherwise.
- A function that returns the string
round(num, placeValue)- A function that returns a float rounded at a specific place value.
- The
placeValueargument is an integer.- If
placeValueis positive, it will round the number atplaceValuedecimal places after (to the right of) the decimal point. - If
placeValueis negative, it will round the number atplaceValuedecimal places before (to the left of) the decimal point.
- If
messageSpacer(string, x, y)- A function used to align inputs in the console.
- It displays a string at the coordinates
(x, y)in the console, then repeatedly adds spacing until the desired horizontal position is reached. - This is used to align
cininputs in the same line.
